Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation Equipment Welder

Brand Name : TRINTFAR

Model Number : FM-20

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 5000-8000 set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500 per year

Delivery Time : Within 90 days of the final payment

Packaging Details : wooden box

Name : Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation equipment welder

After-sales Service Provided : Online support

Pulse width : 0.5~20ms

Laser Head Brand : Optional

Warranty : 1 Year

Focal spot diameter : 0.2mm~3mm

Contact Now

Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation equipment welder

Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation Equipment Welder

Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation Equipment Welder

FN Series Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation equipment welder

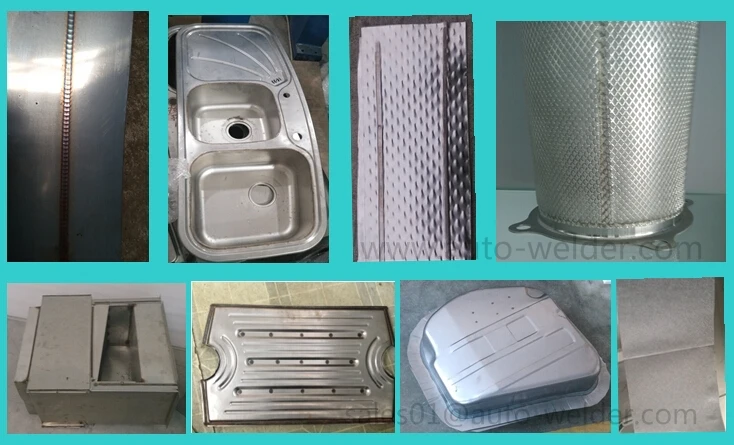

Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.

Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation Equipment Welder

FN Series Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation equipment welder

1.There are two standard Types: Transversal Seam Welding Machine and Longitudinal Seam Welding Machine;

2.Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to

change the direction of upper welding wheel and the lower welding head and change the welding arm;

3.Welding wheel adopt three-phase infinitely adjustable-speed drives,convenient to welding speed adjusting,the two welding wheels have the same tangential speed;

4.Adopt adjustable stroke cylinder,to avoid collision damage between upper and lower welding wheel;

5.Driven one head and free the other head;

Item
Model
Maximum Short Current
KA
Rated Duty Cycle
%
Secondary Voilage
V
Rated Power
KVA
Electrode
Pressure
N
Electrode
Stroke
mm
Cooling Water
Lmim
FM-20
20
50
≈9.8
≤50
4700
80
24
FM-25
25
50
≈9.8
≤70
4700
80
24
FM-40
40
50
≈11.6
≤120
7300
80
30
FM-60
60
50
≈11.6
≤160
12000/18000
100
50
FM-80
80
50
≈11.6
≤240
12000/18000
100
50
FM-120
120
50
≈11.6
≤300
18000
100
60

Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation Equipment Welder
Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation Equipment Welder
Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation Equipment Welder
