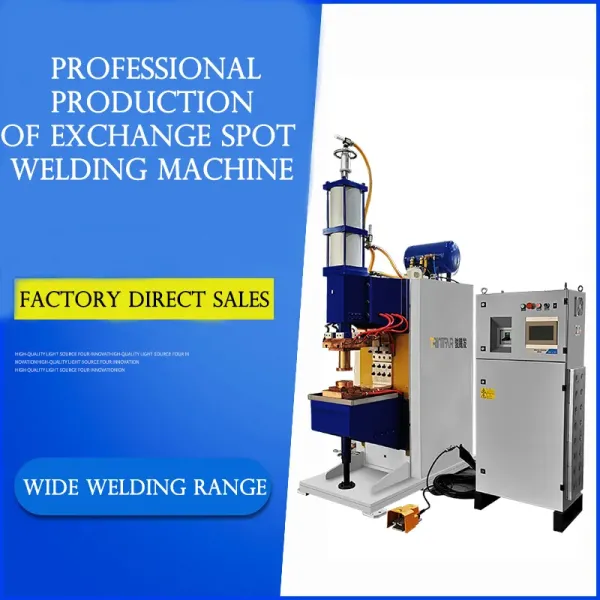

DC Medium Frequency Resistance Projection Welding Machine

Name: DC Medium Frequency Resistance Projection Welding Machine
Brand: Trintfar
Price: 4000 USD

Quality DC Medium Frequency Resistance Projection Welding Machine for sale

Brand Name : Trintfar

Certification : CE

Place of Origin : China

MOQ : 1

Price : 4000~8000

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 60~90

Packaging Details : Wooden brackets/wooden cases

Model NO. : MD-20

Electrode Stroke : Vertical

Transmission : Pneumatic

Welding Spot Number : Single

Contact Now

Product Description

DC Medium Frequency Resistance Projection Welding Machine

Item Model	Maximum Short Current KA	Rated Duty Cycle %	Secondary Voilage V	Rated Power KVA	Electrode Pressure N	Electrode Stroke mm	Cooling Water Lmim
MD-10T	10	50	≈9.8	≤20	1200	50	20
MD-20	20	50	≈9.8	≤50	4700	80	24
MD-25	25	50	≈9.8	≤70	4700	80	24
MD-40	40	50	≈11.6	≤120	7300	80	30
MD-60	60	50	≈11.6	≤160	12000/18000	100	50
MD-80	80	50	≈11.6	≤240	12000/18000	100	50
MD-120	120	50	≈11.6	≤300	18000	100	60

Features:

The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.

Q Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.

Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
